R50 Analogue display

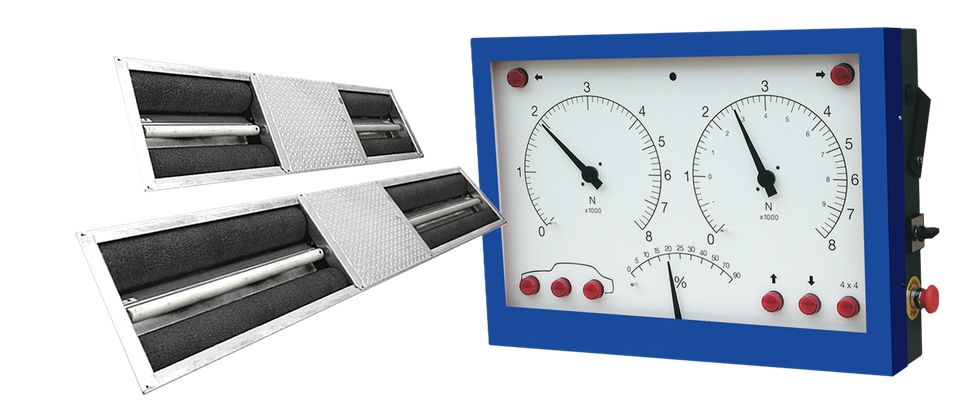

The Escon R50 is an analogue display for roller brake testers up to 8 kN. It is designed for operators who prefer traditional analogue pointers.


Options supplied as standard!


Several combinations of equipment, peripherals and accessories can be connected to create a brake tester for passenger cars and light commercial vehicles exactly adapted to the needs and possibilities in the workshop.

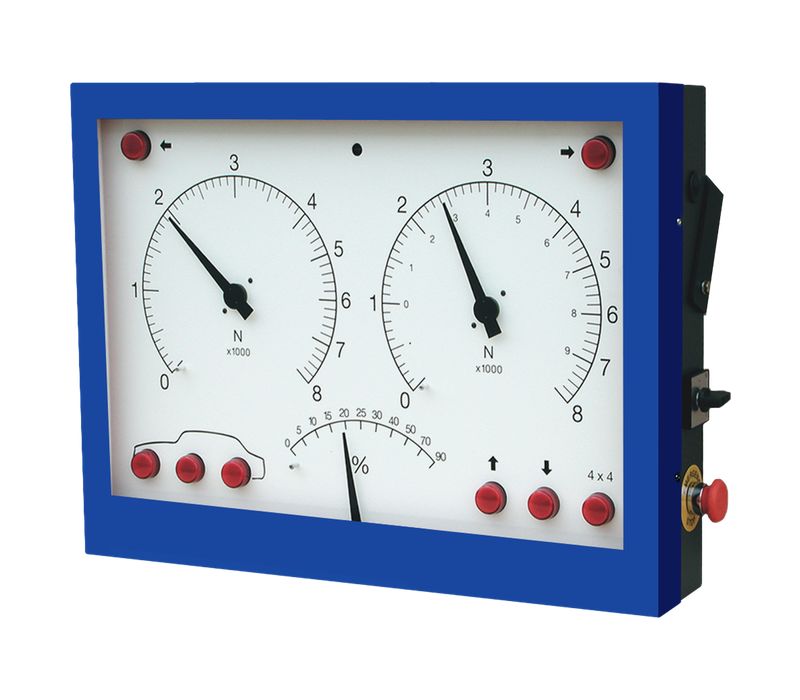

The R50 contains two pointers for the brake forces for the left and right wheel. The third pointer presents difference (imbalance) left-right as well as the brake efficiencies for the service- and parking brake.

Escon R50
Standard
  • Full automatic test sequence.
  • Brake force indication left and right up to 8 kN.
  • Brake force difference left to right (pointer).
  • Wheel lock indication lamps left and right.
  • 4x4 reversible roller kit included.
  • Rolling resistance and ovality measurement.
  • Brake efficiency calculation for the service- and parking brake after manual weight input.
  • Automatic brake efficiency calculation for the service- and parking brake when optional weighing system is integrated in the roller brake tester.
  • Memory for storage of test results for front-, rear- and parking brake with indicators.
  • Easy Exit® drive out of rollers.
  • Infra red remote control for operation of all functions of the roller brake tester.
  • Standard wall bracket.

Specifications

R50
Dimensions
635 x 465 x 165 mm

Options

  • Modification set 3PH 230V / 50Hz
  • Pivoting wall bracket
  • Printer
  • Printer drawer
  • Printer wall bracket
  • Pedestal
  • Pedal force meters
