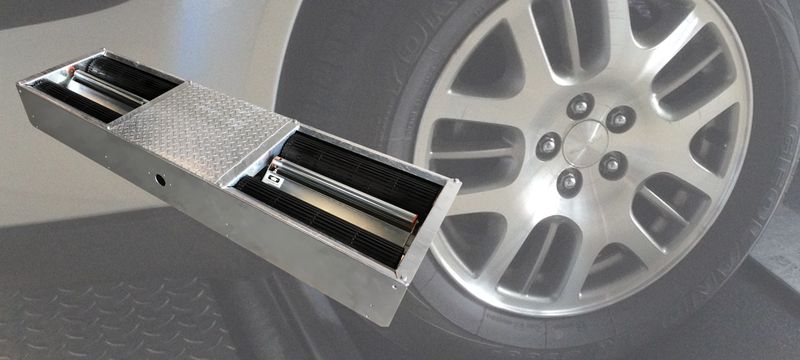

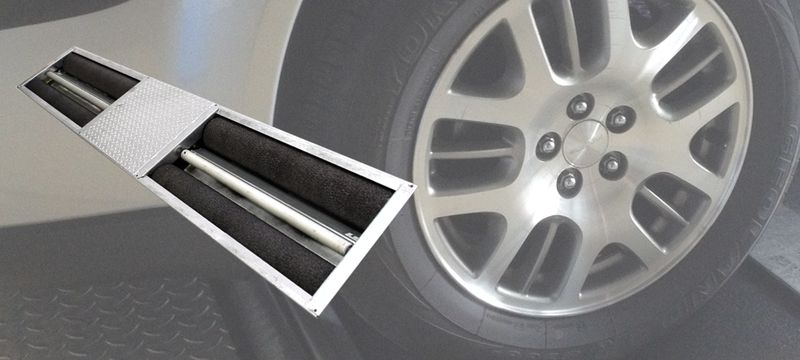

Lift systems for roller brake testers

Various lift systems for roller brake testers are available.


Pneumatic controlled!

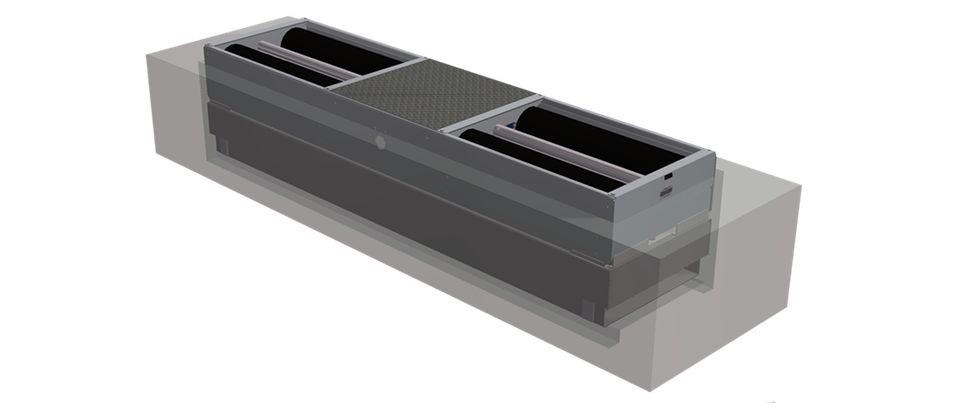

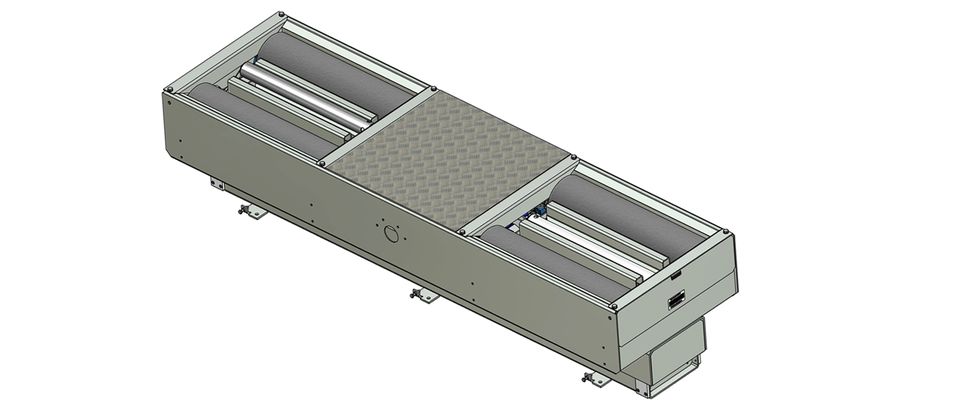

The pneumatic lift system RT900x raises the complete roller brake tester RT9001 or RT9002 with 10cm and makes it very easy to test multiple axles on a trailer or caravan. The lift system operates independently by means of its own control unit.

The pneumatic Easy Exit® lift system makes it easy to drive the vehicle out of the roller brake tester. When the brake test is finished the lift raises the wheels for easy drive out. The lift system operates via the brake tester software. The lift is available for the RT2001, RT2002 and RT9001, RT9002.

Functionality Easy Exit® lift:
1) Default, the lift is in upper position.
2) Drive onto the brake tester.
3) The wheels press the wheel detection rollers down.
4) The lift moves down.
5) The optional weighing starts.
6) The roller brake test starts.
7) When finished, the lift rises.
8) Drive of the brake tester.

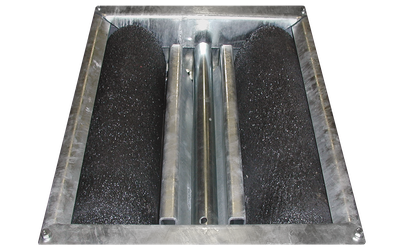

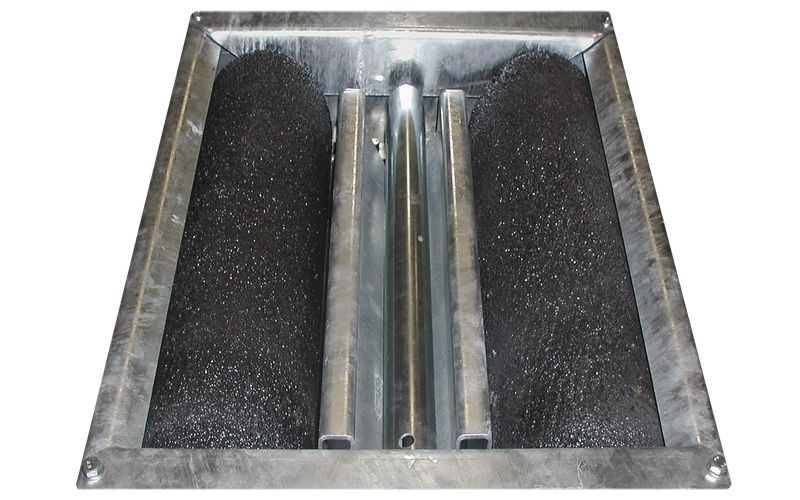

RT200x Easy Exit lift

Specifications

Easy Exit® lift RT200x
Lifting capacity
1200 kg/wheel
Operating pressure
7 bar
Finish
Hot dip zinc
Easy Exit® lift RT900x
Lifting capacity
2000 kg/wheel
Operating pressure
9 bar
Finish
Hot dip zinc
Lift RT900x
Lifting capacity
2000 kg/wheel
Operating pressure
9 bar
Stroke
10 cm
Finish
Hot dip zinc

Impression

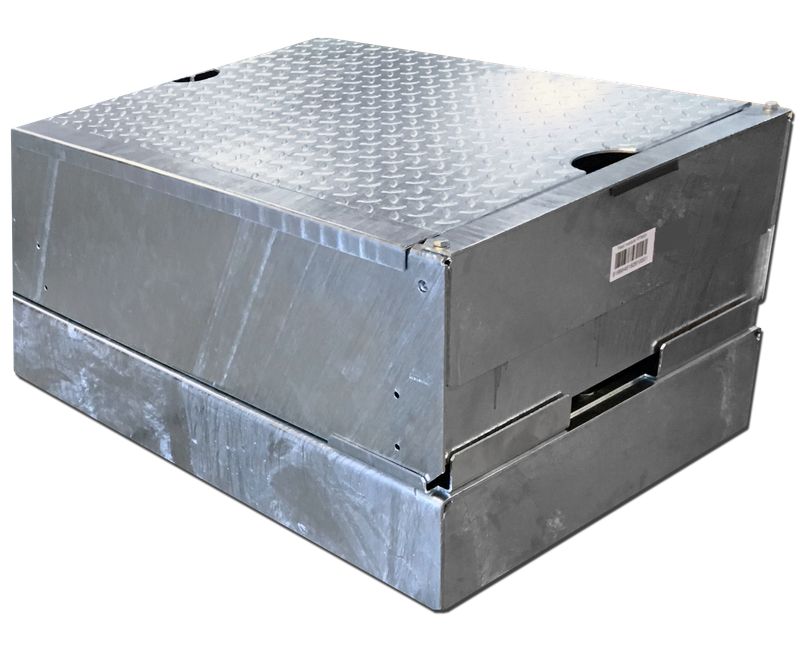

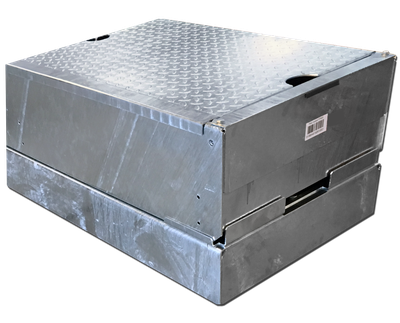

RT900x lift
RT900x lift system.

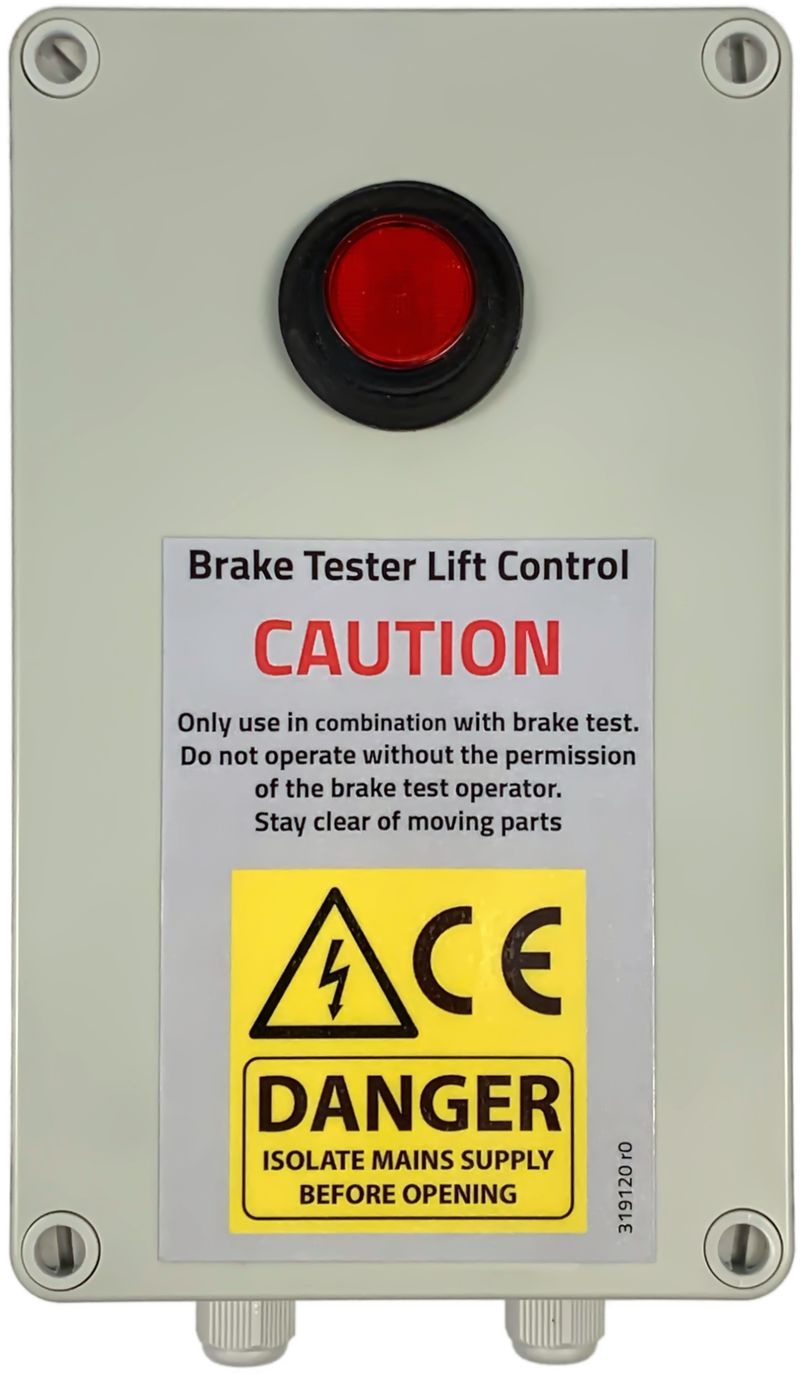

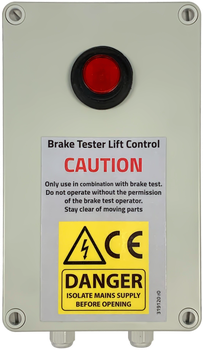

RT900x lift control
RT900x lift control unit.
