Play detector PD5810-15-20-30 series
Meets the EU Directive 2014/45/EU.
The hydraulic PD5810-15-20-30 play detector series for heavy vehicles is designed to check quickly and efficiently most steering and suspension components.
Quick, Simple & Effective!

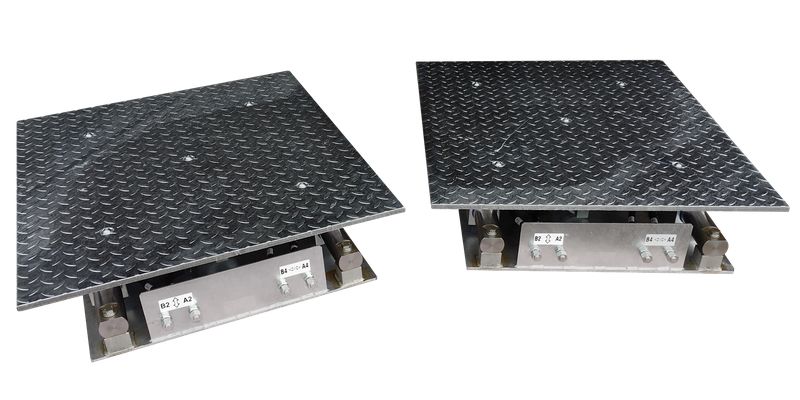

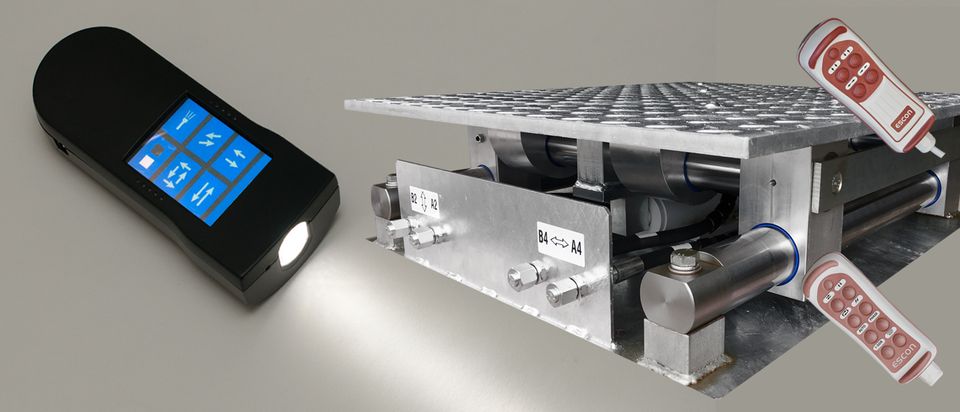

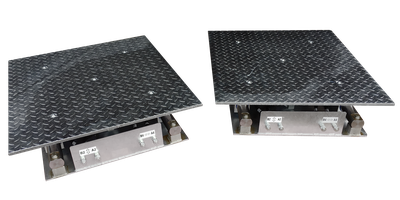

The play detector consists of an hydraulic power unit, a control lamp (cable connected or wireless) and two platforms each with a hot dip zinc chequered plate. One for the left wheel and one for the right wheel.

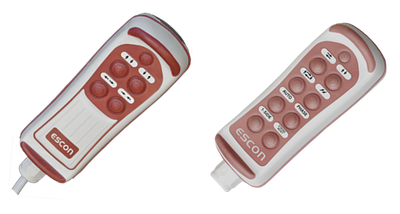

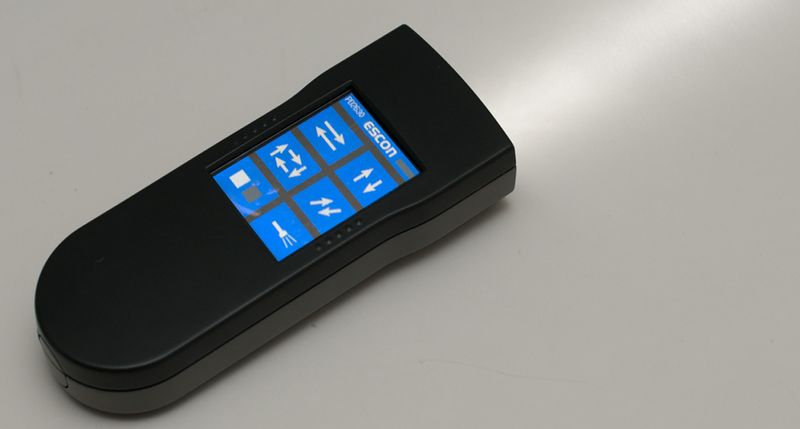

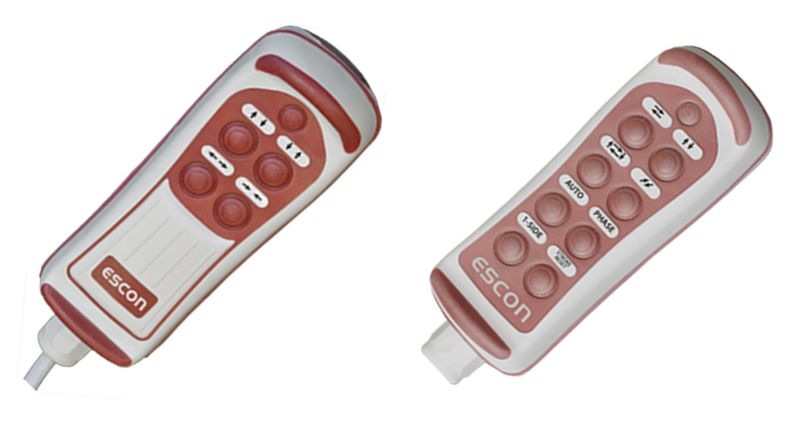

Each platform is actuated by two hydraulic cylinders. Four models are available: the PD5810 (cable torch), PD5815 (=PD5810 but with wireless RF torch), PD5820 (cable torch) and PD5830 (= PD5820 but with wireless RF torch). The model number determines the possible movements of the platforms as well as the type of control lamp supplied.
