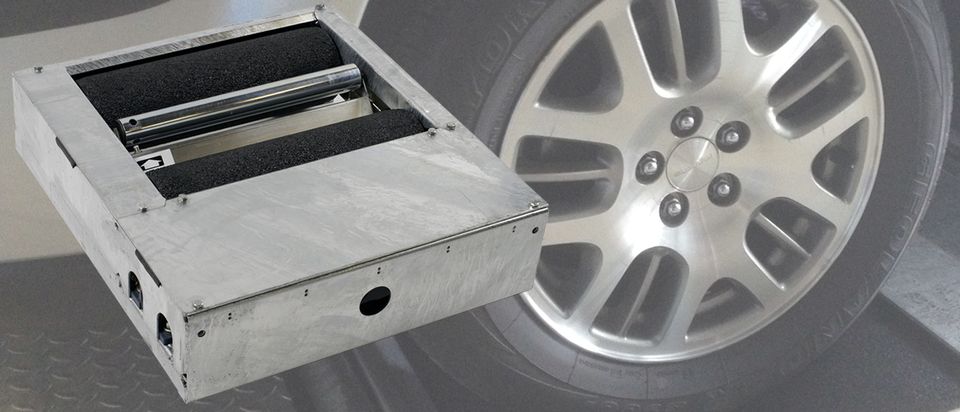

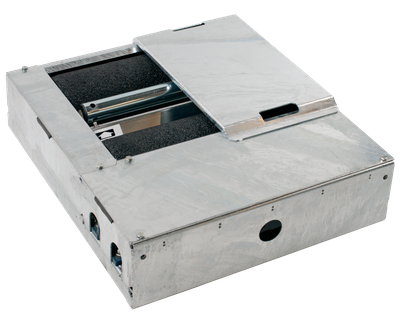

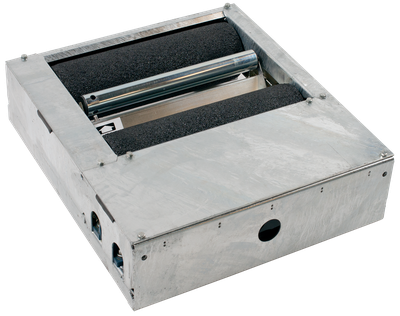

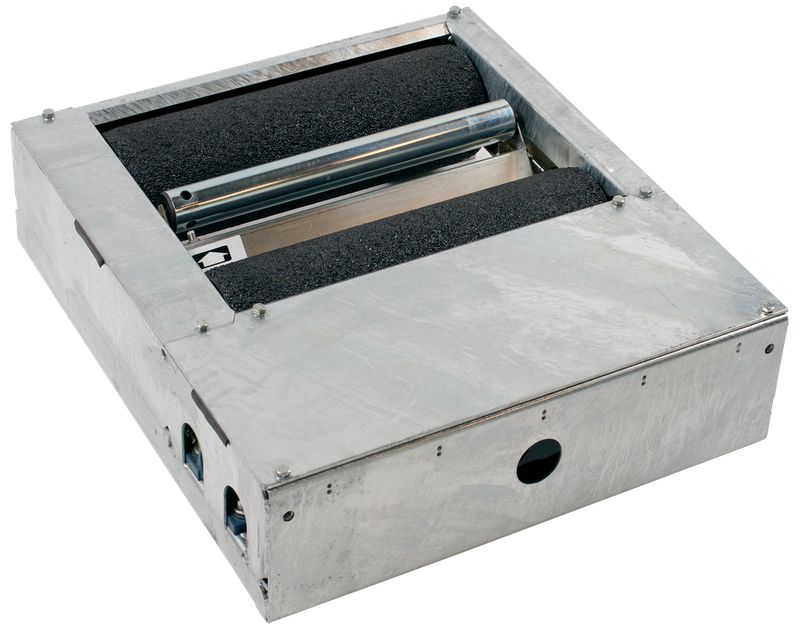

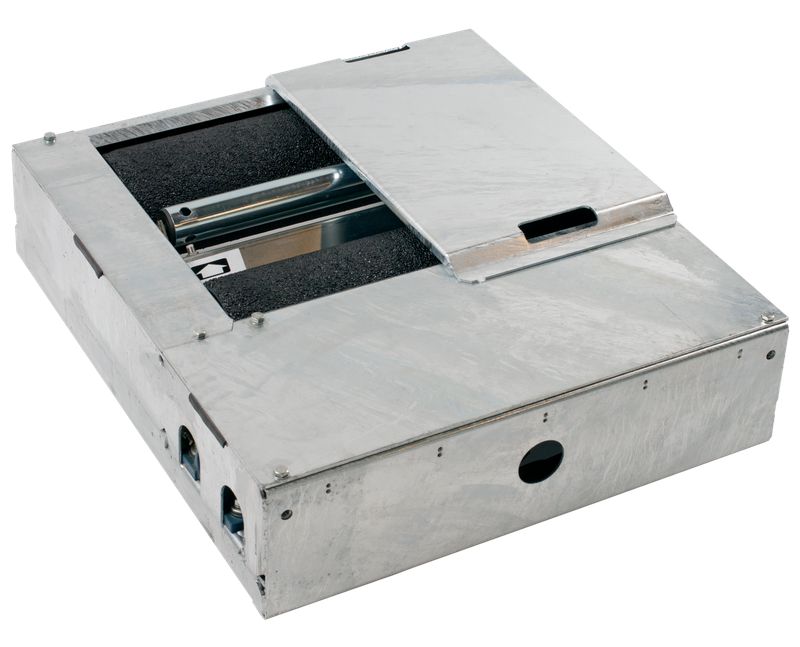

Roller brake testers RT900

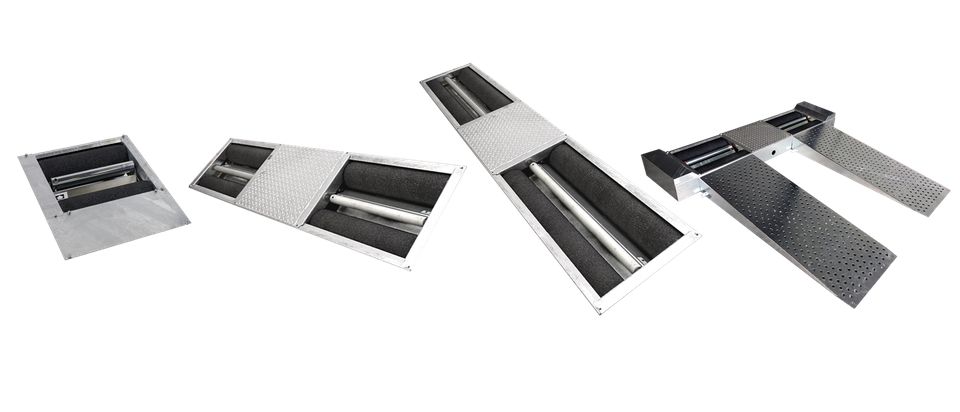

Split bed roller brake tester for passenger cars, vans and light commercial vehicles with a variable track. Also suitable to position ON FLOOR in front of a 4-post lift or on its own in combination with hot dip galvanised RAMPS.
Available in 1-PHASE and 3-PHASE!
In addition to measure the brake forces per wheel and the difference between the left and right sides of an axle, the operator can determine the important quantities rolling resistance, actuation force, ovality (out-of-roundness) and brake fading for each wheel.
Special attention has been given to prevent damage to the tires. The rollers quickly stop when slippage occurs, even during the start-up of the motors. All roller brake testers are equipped with reliable motors.
The brake efficiencies (decelerations) of the vehicle are calculated automatically after manual vehicle weight input or by means of the (optional) weighing facility. These efficiencies can be compared with the legal requirements for the service- and parking brake.
